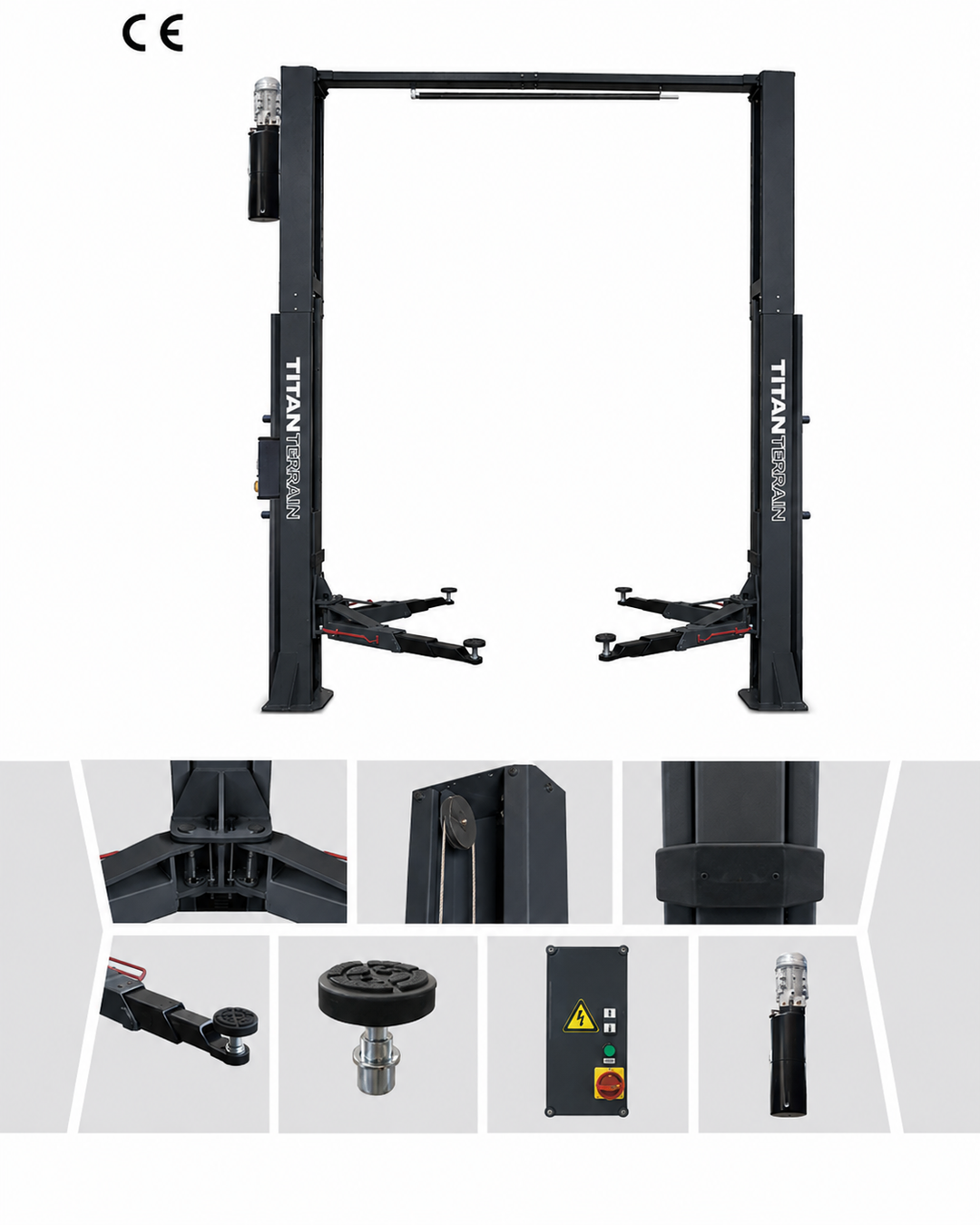

TTN Industrial 6 Tonne 2-Post Car Hoist – Electric Lock Release + FREE 3T Jack

Built for the heavy stuff. 6,000 kg of lifting capacity, long 3-stage arms (985–1,800 mm) and a 2,950 mm drive-through width, so American pickups, loaded touring 4WDs and commercial vans drive in and position easily.

• Lifts 6 tonnes – pickups, modified and touring 4WDs, dual-cab utes, vans and fleet vehicles
• Long 3-stage arms – adjust from 985 to 1,800 mm to suit short and long wheelbases
• 2,950 mm drive-through width – plenty of room to drive in and line up larger vehicles
• Dual Post Electric Lock Release – lower the vehicle without walking between the columns
• 2-year warranty + 5-year structural warranty · CE certified

Is it right for your space?

• Ceiling height over 4,500 mm (overhead design)
• Work area of at least 4,500 × 7,000 mm
• Overall width 4,150 mm, drive-through width 2,950 mm
• 240 V single-phase power

Installation requirements

• Concrete slab at least 200 mm thick, rated 3,000 PSI (21 MPa) or more – the slab can extend beyond the hoist footprint
• Slab level to within 5 mm across the base
• Any floor tiles or bedding over the slab no thicker than 50 mm
• Allow about 15 days for new concrete to cure before installation
• Power supply cable at least RVV 4 × 1.5 mm², with at least 2,000 mm of lead from the outlet

What it costs to get it working

• Hoist: $6,299 + a FREE 3T Rugged Floor Jack ($899 value)
• Freight: depot-to-depot – enter your postcode in the freight calculator to see your cost
• Installation: must be installed by a qualified hoist installer. As a rough guide, allow $1,500–$2,000. We can put you in touch with an installer.

Warranty & certification

• 2-year warranty
• 5-year structural warranty
• CE certified

Specifications

• Lifting capacity: 6,000 kg
• Design: 2-post overhead
• Lock release: Dual Post Electric Lock Release
• Lifting height: 105 – 1,900 mm
• Overall height: 4,440 mm
• Overall width: 4,150 mm
• Drive-through width: 2,950 mm
• Arm length: 985 – 1,800 mm (3-stage)
• Machine weight: 1,155 kg
• Motor: 3.0 kW
• Power: 215–240 V single phase, 50/60 Hz
• Lifting time: 50 seconds or less
• Lowering time: 20 seconds or more
• Noise: 75 dB or less

FAQ

Do you deliver to my door?
Delivery is depot-to-depot. You'll need a forklift or suitable equipment to collect and unload the hoist.

Can I install it myself?
No – the hoist must be installed by a qualified hoist installer. Allow roughly $1,500–$2,000 as a guide, and ask us for an installer contact.

6T or 5T?
Both share the same frame and dimensions, so they need the same space. The 6T is rated to lift an extra tonne for $300 more.
