FREE SHIPPING AUSTRALIA-WIDE

Heavy-Duty Lifting for Bigger Vehicles

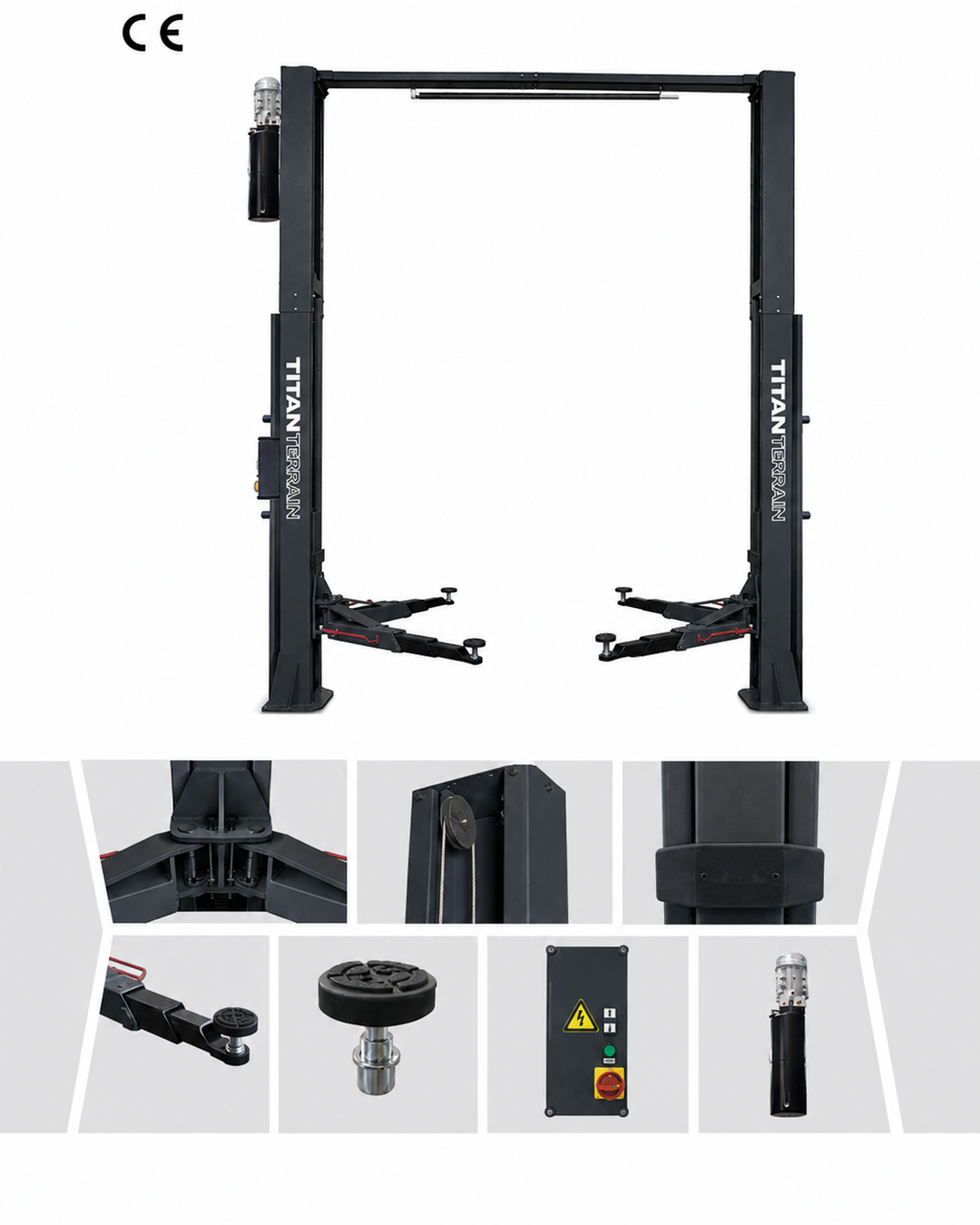

TTN Industrial 5T Two-Post Hoist

Built for heavier vehicles and harder jobs.

From large 4WDs and American pickup trucks to vans, fleet vehicles and light commercial vehicles, the TTN Industrial 5T Two-Post Hoist delivers the lifting capacity, clearance and under-vehicle access serious workshops need.

With a 5,000 kg lifting capacity, extended lifting arms and automatic solenoid lock release, this hoist is designed for professional workshops and serious home garages that need more than a standard vehicle hoist.

This isn’t a lightweight hobby hoist.

This is five tonnes of workshop-ready lifting capacity.

---

✅ Massive 5 Tonne Lifting Capacity

With a rated lifting capacity of 5,000 kg, this hoist is built to handle larger and heavier vehicles, including:

• Large and modified 4WDs
• American pickup trucks
• Dual-cab utes
• Vans and fleet vehicles
• Light commercial vehicles
• Passenger and performance cars

One hoist for almost every vehicle that comes through the workshop.

Whether you are servicing a daily driver or lifting a heavy touring setup, the TTN Industrial 5T Hoist gives you the capacity to take on more jobs.

---

✅ Up to 1,900 mm Maximum Lift Height

Stop crawling underneath vehicles.

With a maximum lifting height of 1,900 mm, the vehicle can be raised high enough to provide clear and comfortable access underneath.

Perfect for:

• General servicing
• Suspension and brake repairs
• Exhaust fabrication
• Gearbox removals
• Driveline work
• Engine and transmission repairs
• Vehicle inspections
• Fleet maintenance

Lifting range: 105 mm to 1,900 mm

Low enough for standard passenger vehicles.

High enough for full workshop access.

---

✅ Full Under-Vehicle Access

A two-post hoist leaves the wheels, suspension, brakes and underbody completely accessible.

Remove wheels without additional lifting equipment.

Access suspension components without ramps getting in the way.

Move freely underneath the vehicle while completing servicing, repairs and installations.

For mechanical work, a two-post hoist gives you the access you need.

---

✅ Automatic Solenoid Lock Release

The TTN Industrial 5T Hoist features an automatic solenoid safety lock release, allowing the operator to control the safety locks from the power unit.

No walking between columns to manually release each lock.

Raise the vehicle.

Lower it securely onto the mechanical locks.

Release and lower it from the control position when the job is complete.

Faster operation. Greater convenience. A cleaner workshop setup.

---

✅ Extended Lifting Arms

The adjustable lifting arms provide the reach required to accommodate vehicles with different wheelbases and lifting-point positions.

Long arm adjustment: 985 mm to 1,800 mm

The extended arm range makes the hoist suitable for everything from passenger vehicles through to longer-wheelbase utes and commercial vehicles.

Position the arms correctly underneath the approved vehicle lifting points and adjust them to suit the job.

---

✅ Heavy-Duty Commercial Construction

With a gross weight of approximately 1,155 kg, this is a substantial piece of workshop equipment.

More than one tonne of steel construction provides the strength and stability required when lifting heavier vehicles.

Featuring:

• Reinforced steel columns
• Heavy-duty base plates
• Robust lifting carriages
• Industrial-grade lifting arms
• Mechanical safety locking system
• Overhead column support structure
• Workshop-grade hydraulic components

Built for workshops that need dependable equipment capable of regular use.

---

✅ Powerful 3.0 kW Motor

The powerful 3.0 kW motor delivers smooth and reliable lifting performance, even when working with heavier vehicles.

Available power configurations:

• 240V single phase
• 415V three phase
• 50/60 Hz

Choose the electrical configuration that best suits your workshop.

Lifting time: 50 seconds or less

Less time waiting for the vehicle to lift.

More time getting the job done.

---

✅ Extra-Wide Workshop Design

The TTN Industrial 5T Hoist provides the additional width needed for larger vehicles.

Overall width: 4,150 mm
Drive-through width: 2,850 mm
Overall height: 4,440 mm

The wider design provides better clearance for large 4WDs, American trucks, commercial vehicles and wide-body vehicles.

Before ordering, confirm that your workshop has sufficient ceiling height, floor space and vehicle access.

---

Who Uses the TTN Industrial 5T Hoist?

Mechanics and Commercial Workshops

Take on a wider variety of vehicles without worrying about the limitations of a smaller hoist.

The 5,000 kg lifting capacity makes it suitable for passenger cars, heavy 4WDs, commercial vans and fleet vehicles.

4WD and Accessory Workshops

Perfect for suspension upgrades, underbody protection, exhaust work, driveline repairs and accessory installations.

Lift modified and fully equipped touring vehicles with greater capacity.

American Truck Specialists

The extended lifting arms, wide workshop footprint and 5T lifting capacity make this hoist well suited to larger American pickup trucks.

Fleet and Commercial Vehicle Workshops

Service work utes, vans and light commercial vehicles using one versatile lifting platform.

Serious Home Workshops

Building the ultimate home garage?

This is for the home mechanic who wants commercial lifting capacity, full under-vehicle access and the ability to work on a wider range of vehicles.

---

Product Specifications

Hoist type: Overhead two-post hoist
Lock release: Automatic solenoid lock release
Lifting capacity: 5,000 kg
Minimum lifting height: 105 mm
Maximum lifting height: 1,900 mm
Overall height: 4,440 mm
Overall width: 4,150 mm
Drive-through width: 2,850 mm
Long arm adjustment: 985 mm to 1,800 mm
Gross weight: Approximately 1,155 kg
Motor power: 3.0 kW
Voltage options: 240V single phase or 415V three phase
Frequency: 50/60 Hz
Lifting time: 50 seconds or less
Noise level: 75 dB or less

---

Before Installation

Before purchasing, confirm that your workshop has:

• At least 4,440 mm of suitable ceiling clearance
• Adequate space around the 4,150 mm-wide hoist
• A suitable reinforced concrete slab
• Access to the required electrical supply
• Sufficient delivery and unloading access
• A qualified hoist installer

Do not install the hoist on cracked, damaged or unsuitable concrete.

Concrete and installation requirements may vary depending on the condition and construction of the slab. The installation site should be assessed by a qualified installer or engineer where required.

---

Installation Support

Need help arranging installation?

TTN Industrial can assist with connecting customers to qualified hoist installers across Australia.

Our team can discuss:

• Your workshop dimensions
• Concrete requirements
• Electrical requirements
• Delivery access
• Unloading requirements
• Installer availability in your area

---

Delivery Information

Free Shipping Australia-Wide

Due to the size and weight of the hoist, suitable unloading equipment will be required at the delivery address.

A forklift or appropriate unloading facility may be necessary.

Our team will contact you before dispatch to confirm delivery access and unloading arrangements.

---

Take On Bigger Jobs

More lifting capacity.

More vehicle compatibility.

More jobs your workshop can complete.

Lift bigger. Work smarter. Choose TTN Industrial.
